*****Description:*******
| Coating Paramter |
| Item | ALTiN | TiALN | TiSiN |
| Hardness(HV) | 3200 | 2800 | 3600 |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 |
| Oxidation | 900 | 800 | 1000 |
| Friction | 0.3 | 0.3 | 0.45 |
| Colour | Black | Purple | Copper |
Specifications:
Quick Detail:
0.5-0.6um Ultra Fine grain size
solid carbide Long neck square end mill
TIALN Coating (Purple),SiN(Copper), AlTiN ( Black)
Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC50
Grain Size: 0.6-0.8um
2. Co:10%, Wc: 90%
3. TRS: 3500N/mm2
5. HRA: 91.5-91.8
1 piece packing.
Standard Length Type

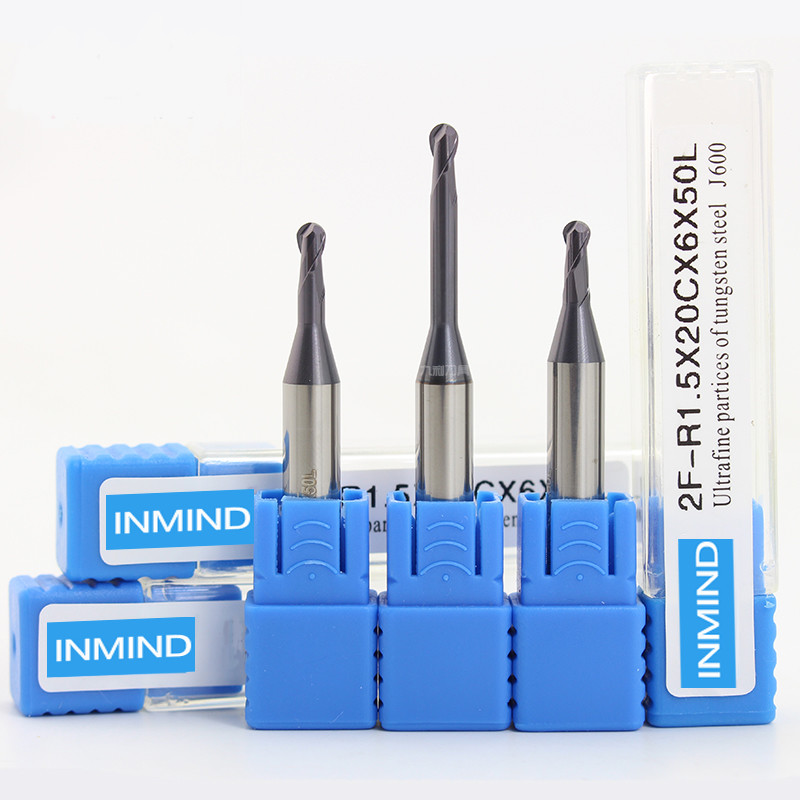

2 Flute Long neck Ball end mill:
| dia d1 | neck length- l2 | O.A.L -l3 | efective length-l1 | neck dia. - d3 | shank dia. - d2 |
| R0.5 | 4 | 50 | 1.3 | 0.95 | 4 |
| R0.5 | 6 | 50 | 1.3 | 0.95 | 4 |
| R0.5 | 8 | 50 | 1.3 | 0.95 | 4 |
| R0.5 | 10 | 50 | 1.3 | 0.95 | 4 |
| R0.5 | 12 | 50 | 1.3 | 0.95 | 4 |
| R0.5 | 16 | 50 | 1.3 | 0.95 | 4 |
| R0.5 | 20 | 50 | 1.3 | 0.95 | 4 |
| R0.75 | 6 | 50 | 1.8 | 1.45 | 4 |
| R0.75 | 8 | 50 | 1.8 | 1.45 | 4 |
| R0.75 | 10 | 50 | 1.8 | 1.45 | 4 |
| R0.75 | 12 | 50 | 1.8 | 1.45 | 4 |
| R0.75 | 16 | 50 | 1.8 | 1.45 | 4 |
| R0.75 | 20 | 50 | 1.8 | 1.45 | 4 |
| R1.0 | 6 | 50 | 2.6 | 1.95 | 4 |
| R1.0 | 8 | 50 | 2.6 | 1.95 | 4 |
| R1.0 | 10 | 50 | 2.6 | 1.95 | 4 |
| R1.0 | 12 | 50 | 2.6 | 1.95 | 4 |
| R1.0 | 16 | 50 | 2.6 | 1.95 | 4 |
| R1.0 | 20 | 50 | 2.6 | 1.95 | 4 |
| R1.0 | 25 | 50 | 2.6 | 1.95 | 4 |
| R1.25 | 8 | 50 | 3.5 | 2.45 | 4 |
| R1.25 | 10 | 50 | 3.5 | 2.45 | 4 |
| R1.25 | 12 | 50 | 3.5 | 2.45 | 4 |
| R1.25 | 16 | 50 | 3.5 | 2.45 | 4 |
| R1.25 | 20 | 50 | 3.5 | 2.45 | 4 |
| R1.25 | 25 | 50 | 3.5 | 2.45 | 4 |
| R1.25 | 30 | 50 | 3.5 | 2.45 | 4 |
| R1.5 | 8 | 50 | 4.5 | 2.94 | 4 |
| R1.5 | 10 | 50 | 4.5 | 2.94 | 4 |
| R1.5 | 12 | 50 | 4.5 | 2.94 | 4 |
| R1.5 | 16 | 50 | 4.5 | 2.94 | 4 |
| R1.5 | 20 | 50 | 4.5 | 2.94 | 4 |
| R1.5 | 25 | 50 | 4.5 | 2.94 | 4 |
| R1.5 | 30 | 50 | 4.5 | 2.94 | 4 |
Note:6mm shank is also availale.
You are benefited beacuse we can:
- Meet quality specifications.
- Have technical ability and knowledge.
- Communicate precisely.
- Offer competitive prices.
- Believe in honest dealing.
- Provide needed information as and when required.
- Can deliver quickly in an emergency.
- Deliver when promised.
- Advise of potential trouble
Advantages:
We own a high-quality production team and a management group. We
are solving all kinds of product problems for our customers based
on solid professional working experience and honest service. With
our efforts, we have earned much trust and support from our
worldwide customers.
01) MOQ: No MOQ limited
02) Deaign: Logo can be customized
03) Environmental: Our product is nickel free, lead free and low cadmium.
04) Our desginer group: we have three designer as a goup.Free artwork and design
,unlimited revisions
05) Price: Competitive price
06) Delivery Time: 100% Guaranteed
07) Service: about 20 people gourp stand by for more than 14 hourse.
08) lead time: Sample delivery: 5 days after artwork is confirmed 15 days for
1000--5000pcs (after confirmed samples)
09) Payment: 30% deposit and balance before shipment (T/T, Western Union,
Paypal)
10) Shipment: by express(DHL,UPS,FedEx,TNT),by air, by sea
Why choose us?
♦ Professional Service : We have been doing international business
several years,we know how to behave ourselves
♦ Full experience of manufacturing: with more than 10 years in
making cutting tools and also many years of OEM and ODM.
♦ High quality:We are supplier of mould industry, IT mobile
industry , Automobile industry
♦ Most reasonable Price: We use the best material but give the best
price as we can.
♦ Prompt Shipment: we shall pay most attention to your purchase
order and will ensure shipment as soon as possible.
Our service: How to order?
1 Customers send detailed inquiry to us by email
2 We reply with price, specifications, packing, photos, and other
details.
3 Both of us agree the price and confirm the details.
4 We write the proforma invoice and send to customers.
5 Customers make deposit.
6 We make mass production samples.
7 We send mass product samples or send photos to customers for
approval.
8 Customers confirm the mass production samples.
9 We start mass production.(we have huge stock for most standard
end mills)
10 We show ready products' photos or customers inspect on site.
11 Customers make balance payment.
12 Delivery is arranged. Feedback from customers for better work in
future.
Service We Can Offer You:
| Quick Response | inquiry will bereplied within 12 hours. |
| High Quality | Well-trained workers and more than 6 years experience. |
| Competitive Price | Directly from factory to save your money. |
| Short Lead Time | Being efficient: 3-7 days for samples and 10-35 days for quantity
orders. |
| Flexibility | Small orders are acceptable for quick delivery and to help you
reduce stock cost. |
| OEM | Custom fabrication according to your drawings ,samples or designs. |
We also can produce special tools according to requirements of
drawings or samples.
FAQ:
1. Q: What's MOQ?
A: MOQ is 200pcs
2. Q: Do you accept trial order less than 200pcs
A: Yes, we do. Please contact us for trial order.
3. Q: Can we get samples?
A: Yes, we can provide regular samples free of charge.
4. Q: What's the lead time for customized sample and sample charge?
A: Lead time for customized sample: 3days; Sample charge: US$17
5. Q: What's the lead time for regular order?
A: 12~15days for order quantity lower than 5000pc; For more
quantity, please conact us for lead time.
6. Q: What's your quality assurance?
A: We have quality warranty 1 year.
7. Q: Do you accept OEM or ODM order?
A: Yes, we accept. We can disscuss on specific case.
8. Q: What's shipping terms:
A: We can do Ex-works, express door to door, FOB, CIF.
Payment:
1. Payment via T/T , Western Union, PayPal or Escrow.
2. 30% deposit, 70% payment before delivery.
Shipping:
1. Ex-works: We can offer ex-works price if you have your own
shiping agent.
2. Express door to door: We can get very competative price as we
have contract with DHL, UPS, FedEx, TNT, etc.
3. FOB price: For big order, FCL, LCL, we can offer you FOB
Shenzhen, or FOB Shanghai price.
4. CIF price: We also can offer you CIF price upon your appointed
forarder.
5. Others: For other shipping terms, we can discuss and find the
best solution for order shipping.
24 Hours Service
| Contact us |
| Attn: | Patrick |
| Tel: | 86 519 83433961 |
| Fax: | 86 519 83433775 |
| Mobile/whatapp/WeChat | +86-13801792622 |
| Skype: | patrik.yin |
| QQ: | 4102512 |
| Website: | http://www.inmind.com.cn |
| Address: | No 35,Weishanhu Road, Xixiashu,Town,Changzhou,Jiangsu,China |
| Your inquiry will be answered within 12 hours. Please feel free to contact us ,we will do our best for you.
Just trust us. |
