Quick Detail
0.5-0.6um Ultra-Fine grain size solid carbide Corner radius end
mill
SiN(Copper),
BALINIT@ X.CEED

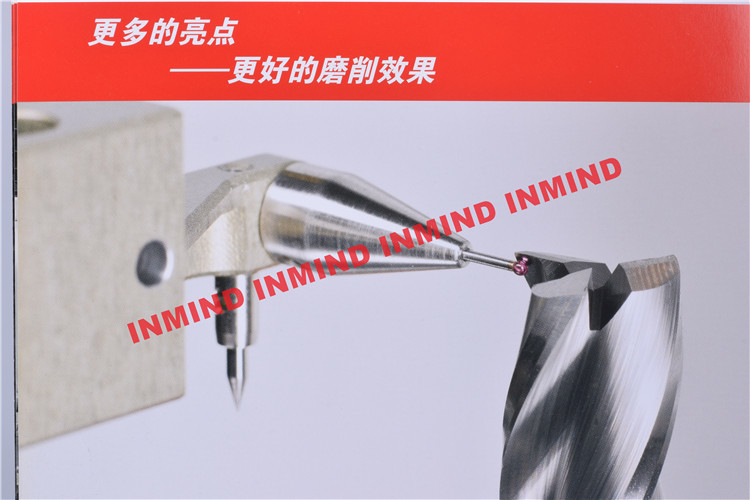

Made by 5 AXIS CNC grinder
Checked by Zoller Inspection Equipment
Workpiece upto HRC65
Standard Type
CB-Ceratizit WF25 Carbide Rods
****Description:***
| custom high quality carbide end mills |
| Creative excellence, speed to market, seamless delivery – whatever
your challenge, can be meet! |
| End mill type | Solid Carbide Square end mill, ball nose end mill, corner radius
endmill,Aluminium end mill,end mills for stainless,Mulit-Flute
power endmills,roughing end mills, Micro end mill, Long neck end
mills, taper flute end mill, Muti-Fuction end mill,chamfer end
mills, drills,step drills,reamer,spotting drills,No-Standard
cutter. |
| Carbide Rod | Micro Grian size 0.6-0.8um, TRS:3500N/mm2,HRA91.5-91.8 Ultra Fine Grain Size 0.5-0.6,TRS:3800-4000N/mm2,HRA92-92.2 WF25 Super Fine Grain Size 0.4um,TRS:4000N/mm2,HRA92.5 ,K44 Super Fine Grain Size 0.3um,TRS:3800-4000N/mm2,HRA93.8, K55 |
| Grinding Machine | Walter(Germany), Michael Deckel(Germany), ANCA(Australia), |
| Size | Diameter:1mm-25mm, Length(AOL):38mm-300mm, Effective cutting length: within 150mm, For Micro End Mill:0.1mm to 0.9mm |
| Surface Coating | TIALN,ALTIN,SIN,TISIN,BALINIT@
X.CEED,BALINIT@
ALCRONA PRO |
| Series | X-Series U-Series S-Series, Super S-Series |
| Finishing treatment | Polish,surface passivation,remove droplet of coating |
| Drawing format | Autocad,PDF, JPEG,Adobe Illustrator, Photoshop, |
| Packing details | 1PCS PVC Single Packing, 10pcs packing again, |
| MOQ | 100pcs Per Size |
| Delivery time | 7-8 work days after confirm order |
| Payment Terms | T/T, PayPal ,Western Union, etc |
| Shipment | DHL/FedEx/UPS for small package, or shipped by sea/air to you which
is nearest to your address |
Applications:
Suitable for steel , cast iron , stainless steel ect material
Specifications:
| order number | Cutting | Cutting Length | Shank | R Corner | AOL |
| d | l | D | R Corner | L |
| 3×8×4D×R0.5×50L×4F | 3 | 8 | 4 | R0.5 | 50 |
about the corner,we supply from R0.1 to R1.0 for 4mm.
we also supply the other size of corner radius endmill
| order number | Cutting | Cutting Length | Shank | R Corner | AOL |
| d | l | D | R Corner | L |
| 1×3×4D×R0.1×50L×4F | 1 | 3 | 4 | R0.1 | 50 |
| 1×3×4D×R0.2×50L×4F | 1 | 3 | 4 | R0.2 | 50 |
| 1.5×3×4D×R0.2×50L×4F | 1.5 | 4 | 4 | R0.2 | 50 |
| 1.5×3×4D×R0.3×50L×4F | 1.5 | 4 | 4 | R0.3 | 50 |
| 2×6×4D×R0.2×50L×4F | 2 | 6 | 4 | R0.2 | 50 |
| 2×6×4D×R0.3×50L×4F | 2 | 6 | 4 | R0.3 | 50 |
| 2×6×4D×R0.5×50L×4F | 2 | 6 | 4 | R0.5 | 50 |
| 2.5×8×4D×R0.2×50L×4F | 2.5 | 6 | 4 | R0.2 | 50 |
| 2.5×8×4D×R0.5×50L×4F | 2.5 | 6 | 4 | R0.5 | 50 |
| 3×8×3D×R0.3×50L×4F | 3 | 8 | 3 | R0.3 | 50 |
| 3×8×3D×R0.5×50L×4F | 3 | 8 | 3 | R0.5 | 50 |
| 3×8×4D×R0.3×50L×4F | 3 | 8 | 4 | R0.3 | 50 |
| 3×8×4D×R0.5×50L×4F | 3 | 8 | 4 | R0.5 | 50 |
| 4×10×4D×R0.5×50L×4F | 4 | 10 | 4 | R0.5 | 50 |
| 4×10×4D×R1.0×50L×4F | 4 | 10 | 4 | R1.0 | 50 |
| 4×10×6D×R0.5×50L×4F | 4 | 10 | 6 | R0.5 | 50 |
| 4×10×6D×R1.0×50L×4F | 4 | 10 | 6 | R1.0 | 50 |
| 5×13×6D×R0.5×50L×4F | 5 | 13 | 6 | R0.5 | 50 |
| 5×13×6D×R1.0×50L×4F | 5 | 13 | 6 | R1.0 | 50 |
| 6×15×6D×R0.5×50L×4F | 6 | 15 | 6 | R0.5 | 50 |
| 6×15×6D×R1.0×50L×4F | 6 | 15 | 6 | R1.0 | 50 |
| 8×20×8D×R0.5×50L×4F | 8 | 20 | 8 | R0.5 | 60 |
| 8×20×8D×R1.0×50L×4F | 8 | 20 | 8 | R1.0 | 60 |
| 8×20×8D×R1.5×50L×4F | 8 | 20 | 8 | R1.5 | 60 |
| 10×25×10D×R0.5×50L×4F | 10 | 25 | 10 | R0.5 | 75 |
| 10×25×10D×R1.0×50L×4F | 10 | 25 | 10 | R1.0 | 75 |
| 10×25×10D×R1.5×50L×4F | 10 | 25 | 10 | R1.5 | 75 |
| 10×25×10D×R2.0×50L×4F | 10 | 25 | 10 | R2.0 | 75 |
| 12×30×13D×R0.5×50L×4F | 12 | 30 | 12 | R0.5 | 75 |
| 12×30×13D×R1.0×50L×4F | 12 | 30 | 12 | R1.0 | 75 |
| 12×30×13D×R1.5×50L×4F | 12 | 30 | 12 | R1.5 | 75 |
| 12×30×13D×R2.0×50L×4F | 12 | 30 | 12 | R2.0 | 75 |
we also accept customized size by order
Competitive Advantage:
- More than ten years production experence
- Have more than 10 sets of CNC machine center
- Large in stock qty
- Made from 100% virgin raw material
Eeveryone goods go through strict quality inspection
Why choose INMIND?
♦ Professional Service : We have been doing international business
several years,we know how to behave ourselves
♦ Full experience of manufacturing: with more than 10 years in
making cutting tools and also many years of OEM and ODM.
♦ High quality:We are supplier of mould industry, IT mobile
industry , Automobile industry
♦ Most reasonable Price: We use the best material but give the best
price as we can.
♦ Prompt Shipment: we shall pay most attention to your purchase
order and will ensure shipment as soon as possible.
Delivery time:
If you give me order (all not have in stock)
- 1,000-10,000 pcs, 15 workdays to finish
- 10,000-50,000 pcs, 25 workdays to finish
- 50,000-100,000 pcs, 35 workdays to finish
- 100,000-500,000 pcs, 50 workdays to finish
Our service: How to order?
1 Customers send detailed inquiry to us by email
2 We reply with price, specifications, packing, photos, and other
details.
3 Both of us agree the price and confirm the details.
4 We write the proforma invoice and send to customers.
5 Customers make deposit.
6 We make mass production samples.
7 We send mass product samples or send photos to customers for
approval.
8 Customers confirm the mass production samples.
9 We start mass production.(we have huge stock for most standard
end mills)
10 We show ready products' photos or customers inspect on site.
11 Customers make balance payment.
12 Delivery is arranged. Feedback from customers for better work in
future.
Our Service:
• We provide high precisin standard solid carbide alloy tools,such
as drills,milling cutters,ball nose end mills,reamers and so on.
Exclude producing these standards products,we have capacity to
design the new products,can design nonstard or customized products
according to customer`s drawing and sample.
• Our sales will reply your inquiry and questions in 24 hours.
• Our engineers provide full technique support to our customers.
• Our technicians design non-standard workpiece machining tools for
our customers to solve manufacturing problems.
• We can make your own logo on your products.Provide OEM tools.
Payment:
T/T ,Western Union, Paypal,Alipay,or the other ways
Packaging
Carbide:
1 pcs in plastic tube, 10 tubes in a small box, and packed in a
carton box(around15 kgs/carton)
Step1: One plastic pipe pack one piece, 10 pieces per group
Step2: Use the air bubble paper to encase the plastic paper
Step3: Put the goods encased with air bubble paper into the carton
Step4: Other packing will be accept according to your needs.
Shipment
---Shipping terms: DHL, UPS, FEDEX, TNT, EMS
--- Loading port: Shanghai, Ningbo, China main port.
